High print speed and high print quality

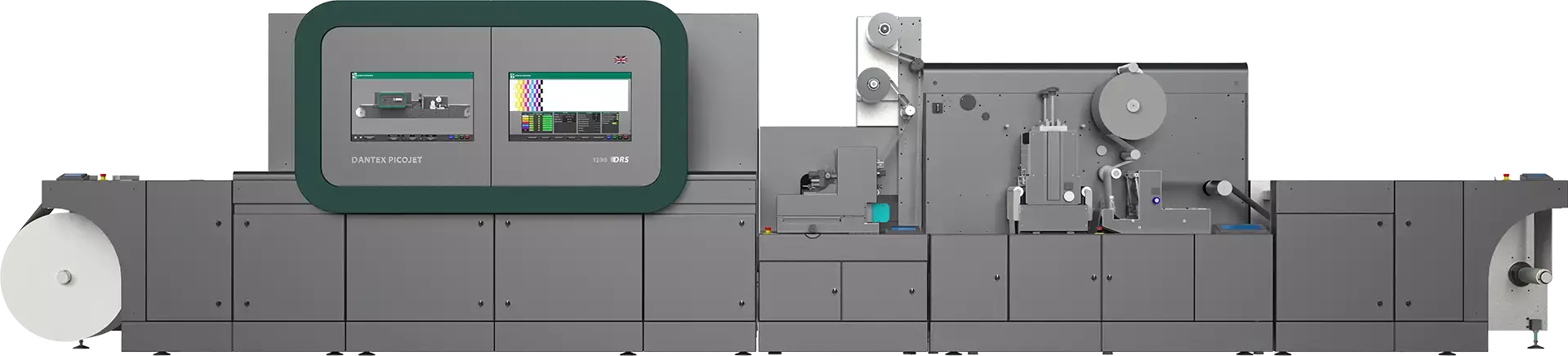

PicoJet 1200S Hybrid
Our flagship PicoJet, the 1200S Hybrid, has a print width of 330mm/13” and runs at high speed – 75m/250′ per minute. Built on a modular platform, this press is available as reel to reel or as a Hybrid system incorporating Die Cutting Station and Flexo Station options. It can also be custom configured either as CMYK, CMYK plus White and/or additional colour stations. The PicoJet 1200S is the latest version of the acclaimed Picojet 330S.
Wide Range of Finishing Options
The 1200S Hybrid can be fitted with a wide range of finishing options including Cold Foil, Lamination, Nip & Peel, Razor or Shear Slitting, RD Scorer (Edge Trim), Die and Die Loading Equipment.
Superior Quality Print
PicoJet offers superb quality print, fast. Using a 2.5pl ink droplet size offering exceptional ink coverage without any loss of quality or colour integrity, PicoJet delivers high quality results even on the most challenging jobs at an effective resolution of 1200 dpi. PicoJet uses energy-efficient LED final cure with temperature-controlled backup roller for temperature-sensitive substrates. PicoJet also incorporates static control, web cleaning and corona treatment for wide choice substrate printing capability.
Technical Specifications
Reel to Reel Dimensions (L x D x H) | 515cm x 170cm x 205cm / 202.76" x 66.93" x 80.71" |
Print Width | 330mm / 13" |
Print Speed | 75m / 250' per minute |
Resolution | 600 x 600 dpi (1200 dpi effective resolution) |
Minimum Droplet Size | 2.5pl |
Substrate Thickness | 50 - 300μm (Thickness dependent on material properties) |
Available Colours | CMYK / WHITE / ORANGE / GREEN / VIOLET |
Software | MaxPrint |
PicoJet Hybrid Module Options
Available on 1200 | 1200i | 1200S
Die Station Module - Options
- Razor Slit
- Shear Slit
- RD Scorer (Edge Trim)
- Lamination Unwind
- Lamination Rewind
- Nip & Peel (Rewind only)
- Die Loading Trolley
- Die Cylinder Bench
- Video Inspection System (various options available)
Flexo Station Module - Options
- LED Curing
- Mercury Arc Curing
- Cold Foil
